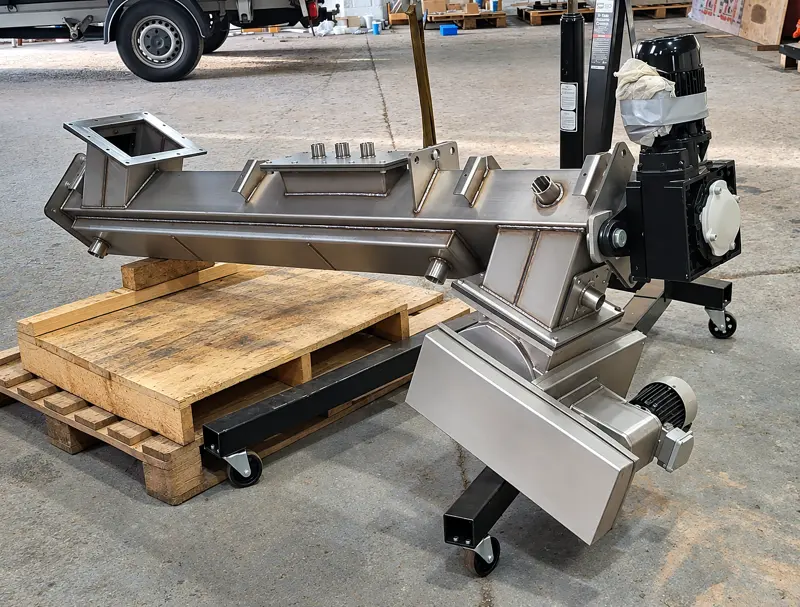

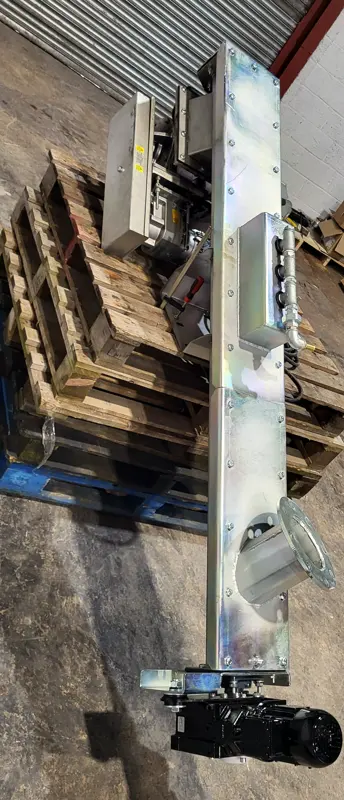

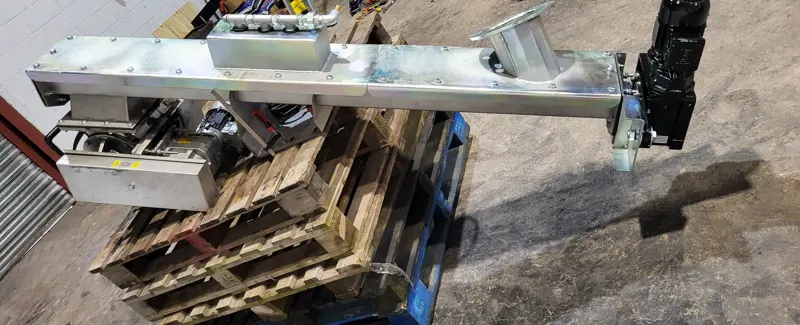

Augers & screw conveyors
Hot, dusty, abrasive and sticky biochar and biomass bridge, wear and ignite in standard conveyors. Our screws meter, seal and cool material between process stages.
| Screw diametertypical | 150–400 | mm |
| Throughput (biochar, dry) | 0.1–0.5 | t/h |
| Length (single drive, shaftless) | ≤12 | m |
| Inclinetypical | 0–30 | ° |
| Drive powertypical | 0.75–5.5 | kW |
| Char inlet temperature (jacketed) | ≤270 | °C |
| Materials | 304/316 stainless; S275 mild steel painted/galvanised; abrasion-resistant flights option | |
| Power | 400 V / 3-ph / 0.75–5.5 kW (VFD option) | |
Typical = indicative range. Every unit is sized to your material and duty, and confirmed on the quote.
Where it’s used
- Kiln/pyrolysis discharge
- char cooling & wetting
- buffer-to-bagging transfer
- feedstock infeed
- ash removal
For: Biochar & CDR plant builders/operators; biomass boiler integrators; AD plants
Why ours
- Sized from your measured bulk density and duty, not catalogue tables

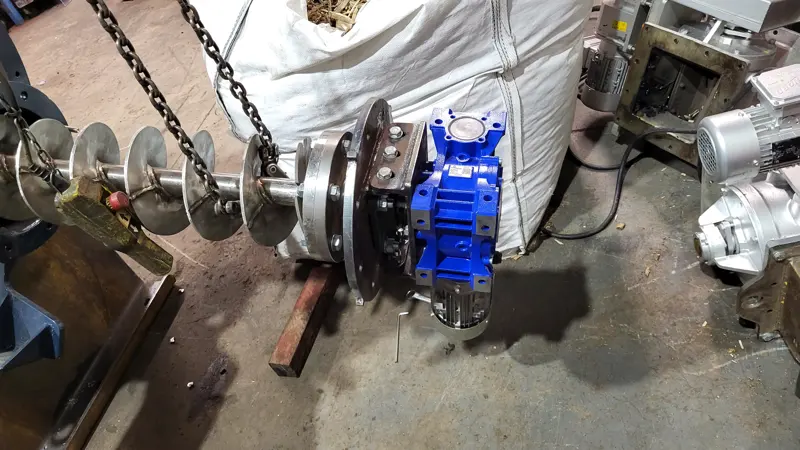

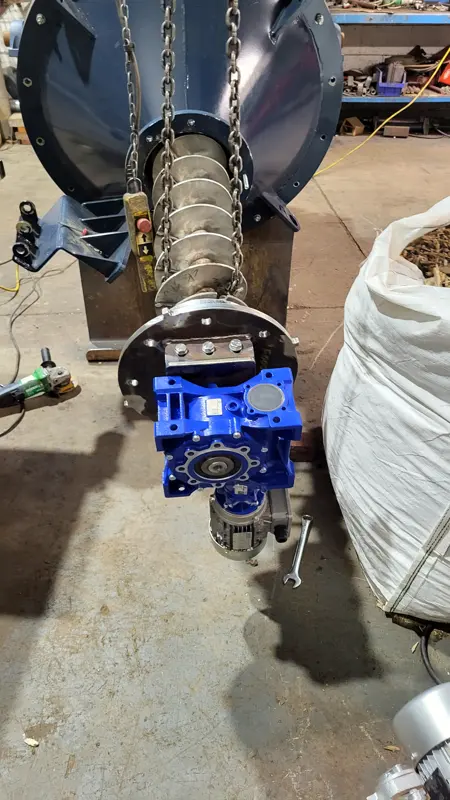

- shaftless spiral with lifter tabs for mixing
- load cells and torque trending for throughput verification
What you get
- DoC
- O&M manual
- GA drawing
- electrical schematics
- spares list
Options: Shafted U-trough; shaftless; tubular; water-jacketed cooling; water injection points; load-cell mounting; VFD
Complete the line
- Marking
- CE
- Standards
- Supply of Machinery (Safety) Regs 2008 / EU 2006/42 (→ 2023/1230 from Jan 2027); EN ISO 12100; EN 60204-1; EN ISO 13857; EN 618
What is the lead time?
Typically 6–12 weeks from an approved general arrangement drawing.
Can you fit it to our existing plant?
Yes. We survey the site, draw the interface and build to suit your flanges, heights and controls.
Do you install and commission?
Yes. We deliver, install, wire, test and commission, or supply for your own team to fit.
Tell us your material and tonnage. We'll size it.
Send photos, drawings or just a description. You get a sized proposal and a firm price.
