LIVE| Batch | Time | Wet kg | Moist % | Dry kg | Status |
|---|---|---|---|---|---|
| B-0419 | 11:03 | 512.4 | 29.6 | 360.8 | ● Recording |
| B-0418 | 10:42 | 1,008.0 | 30.1 | 704.6 | Logged ✓ |
| B-0417 | 10:21 | 1,015.2 | 29.4 | 716.7 | Logged ✓ |
| B-0416 | 10:00 | 996.8 | 30.6 | 691.8 | Logged ✓ |

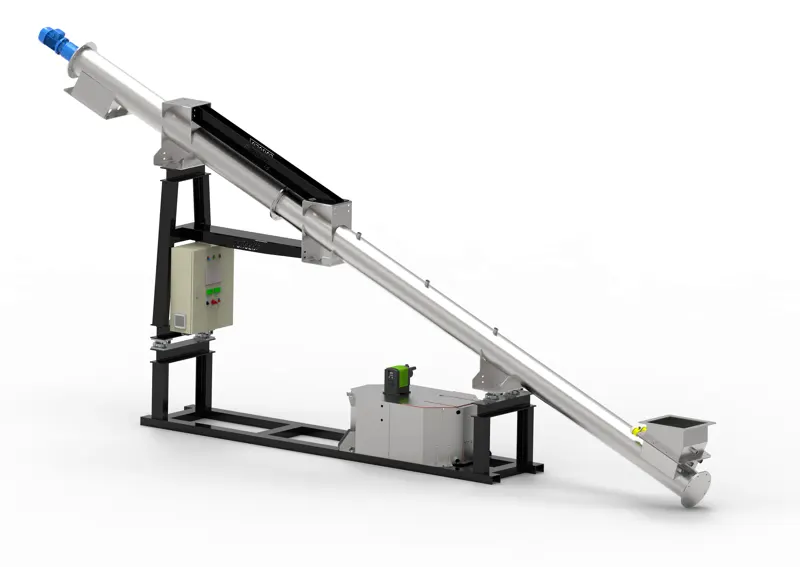

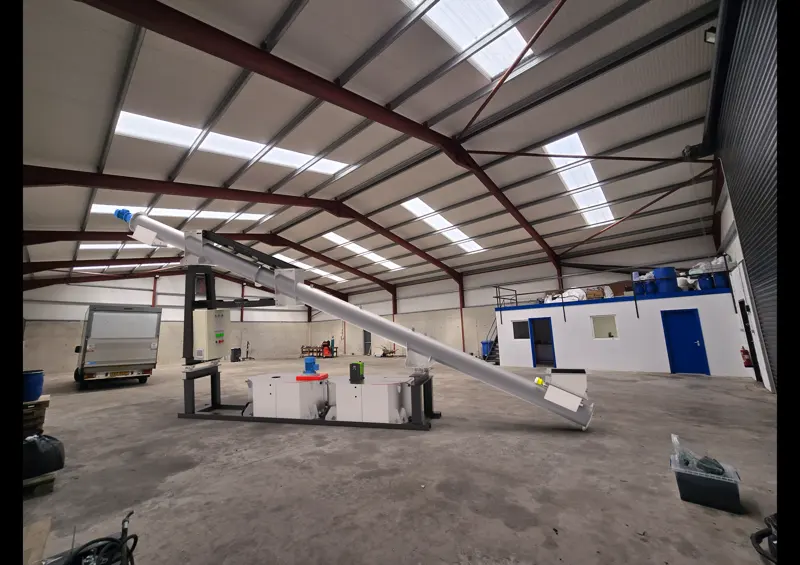

Live dashboard (illustrative data), then design renders.
BDV – Biochar Digital Verification
Carbon removal buyers and registries want proof of every tonne, and biochar must be at or below 40 °C when packed for shipping. BDV systems meter, weigh, moisture-test, inoculate and bag your char, logging every batch into a tamper-evident digital record.
| Model range | BDV-50 – BDV-1000 | |
| Dry char throughput | 50–1,000 | kg/h |
| Mass accuracytypical | ±0.5–1 | % |
| Moisture accuracytypical | ±0.5 | % |
| Packing temperature interlock | ≤40 | °C |
| Data outputs | 4–20 mA / Modbus / CSV | |
| Materials | 304 stainless product contact; mild steel frame | |
| Power | 400 V / 3-ph; sensors 24 V DC; compressed air 6 bar | |
Typical = indicative range. Every unit is sized to your material and duty, and confirmed on the quote.
Meter, test, inoculate, bag and record every tonne
The digital record is only as good as the hardware behind it. BDV combines the augers, pumps, flow meters, weighing and sensors with the data logger, so every figure in the report is measured, not estimated.
Read our guide: Biochar dMRV — what registries expect →
Metered feed
Metering augers or a screw weigher deliver char at a measured, steady rate.
Moisture and temperature
Inline sensors record moisture and packing temperature for every batch and bag.
Inoculation
Dosing pumps and flow meters charge the char at the fill head, with every dose logged.
Weighing
Load cells under the bag frame check every bag to a set weight.
Digital verification (dMRV)
Every bag gets a timestamped record: weight, moisture, temperature and dose, exported for validation, customers and carbon removal reporting.
Dust-sealed filling
Sealed fill head, extraction port and vibration densification for stable, clean bags.
Sized by dry-char throughput
The model number is the maximum dry-char throughput in kg/h at the stated accuracy. ZEDE matches are indicative and depend on feedstock.
| Model | kg/h dry char | Typical match |
|---|---|---|
| BDV-50 | 50 | ZEDE 300 kW |
| BDV-150 | 150 | ZEDE 1000 |
| BDV-500 | 500 | ZEDE 3 MW |
| BDV-1000 | 1,000 | ZEDE 6 MW |
| Custom | > 1,000 | Built to order |
Download the BDV spec sheet
Model range, technical specification, the data record each bag produces, and what registries and shippers need from it.
- BDV-50 to BDV-1000 throughputs
- Weighing, moisture and temperature specification
- Batch record fields and export formats
- Pricing from and lead times

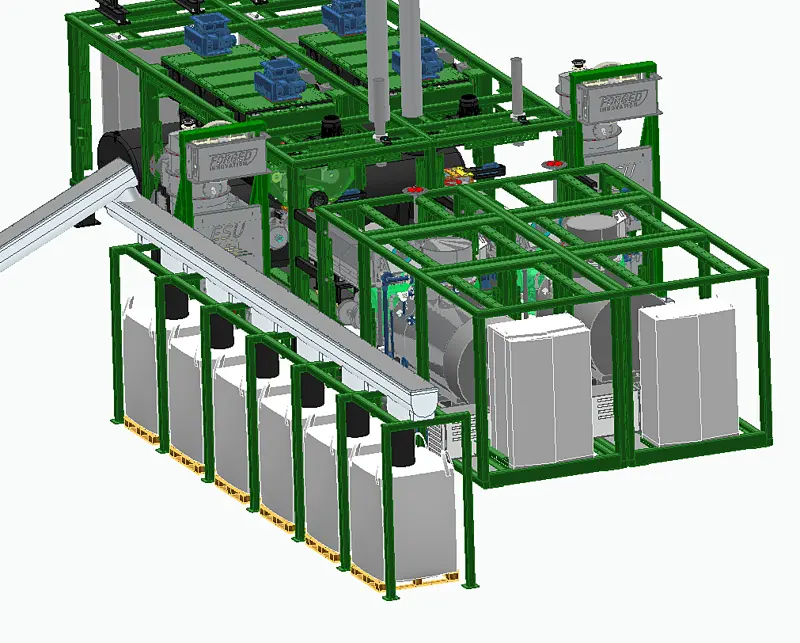

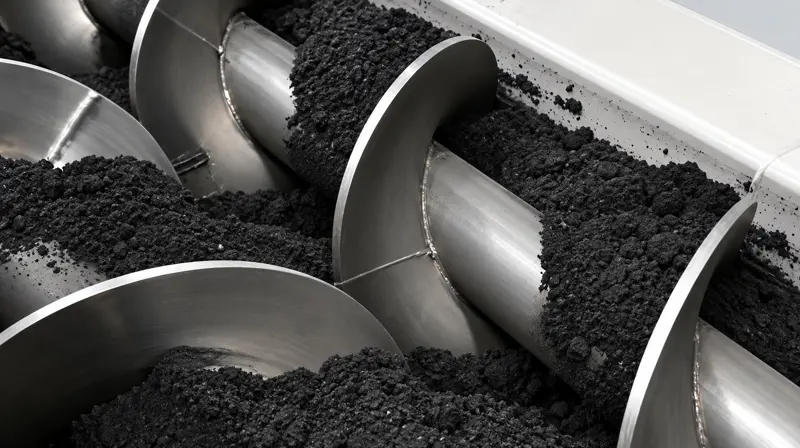

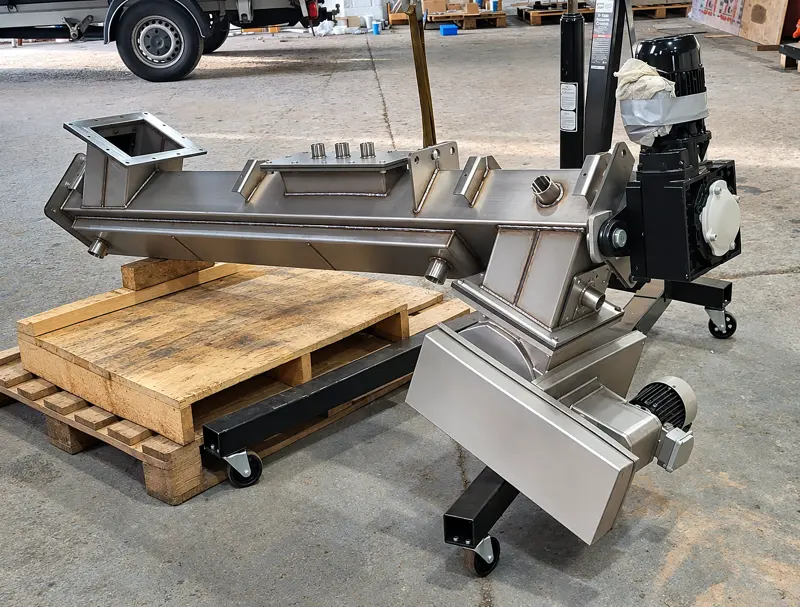

Complete the line
Where it’s used
- Pyrolysis output lines
- conditioning and quench augers
- bagging and dispatch
- contract packing
For: Biochar producers certifying (or preparing to certify) with carbon removal registries; CDR project developers
Why ours
- One system: metering augers, weighing, moisture sensing, dosing pumps and flow meters, all feeding one data logger
- every bag and batch timestamped and exportable for audit (dMRV)
- inoculation metered and logged at the fill head
- sized by dry-char throughput, BDV-50 to BDV-1000
- retrofits to existing lines
What you get
- DoC
- O&M manual
- GA drawing
- electrical schematics
- calibration certificates (load cells, oven-dry moisture)
- data-integrity statement
- monitoring-plan template
Options: BDV-50, BDV-150, BDV-500, BDV-1000 or larger to order; screw weigher or load cells; microwave/NIR moisture sensing; inoculation dosing pumps and flow meters; vibration densification; manual to fully automatic
- Marking
- CE
- Standards
- Supply of Machinery (Safety) Regs 2008 / EU 2006/42 (→ 2023/1230 from Jan 2027); EN ISO 12100; EN 60204-1; EMC & Low Voltage Regs; NAWI Regs 2016 (trade weighing); IMDG SP 978 (≤40 °C packing); carbon registry monitoring requirements (designed to)
What does the model number mean?
It is the maximum dry-char throughput in kg/h at the stated accuracy. Sizes run from BDV-50 to BDV-1000, with larger systems built to order. At 30 % moisture a BDV-500 carries about 714 kg/h of wet char.
What does it record?
Mass, moisture, temperature and inoculant dose for every bag and batch, timestamped and stored in a tamper-evident log you can export for audit and carbon removal reporting.
Why does packing temperature matter?
Since January 2026, biochar shipped under UN 1361 must be at or below 40 °C when packed, with the temperature recorded. BDV checks and logs it for every bag.
Can it retrofit to an existing line?
Yes. The metering, sensing and logging fit existing augers, hoppers and bagging frames.
What does the annual fee cover?
Data hosting, calibration reminders and support. Priced from the figure shown.
Tell us your material and tonnage. We'll size it.
Send photos, drawings or just a description. You get a sized proposal and a firm price.
